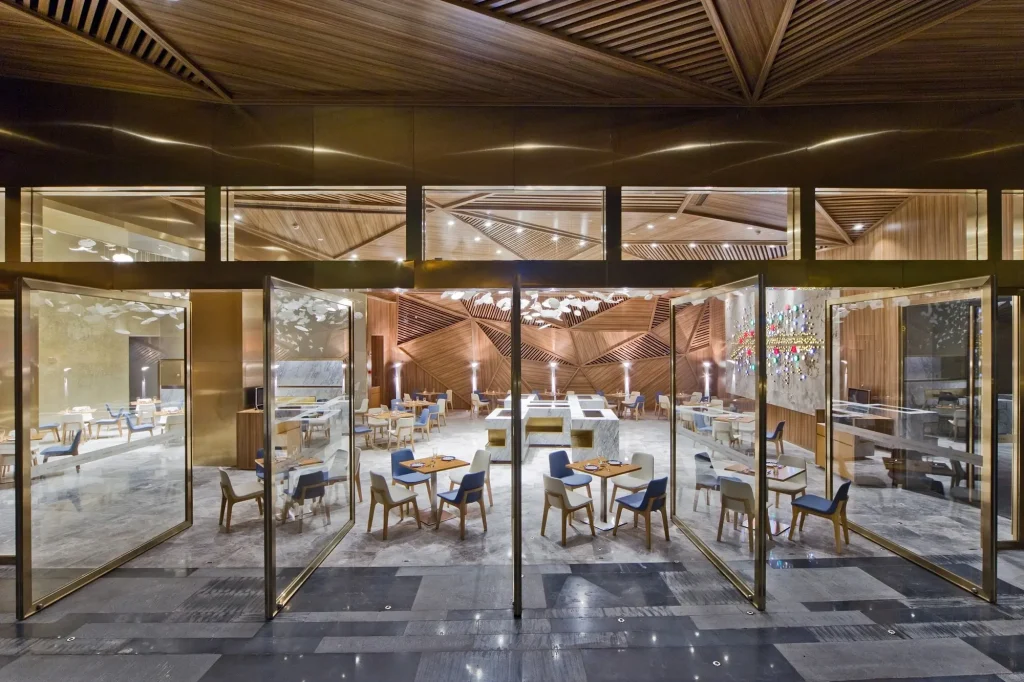

A pivot door is a swinging door that rotates on a central or offset pivot hinge, rather than traditional side hinges. This allows the door to open with a smooth, effortless motion from a fixed axis point at the top and bottom. They offer a minimalist, architectural look, often appearing frameless or floating, and are popular in modern residential and commercial settings.
Top-and-bottom pivot mechanism
Smooth, effortless operation
Supports oversized materials
Clean, minimalist aesthetics
Concealed hardware available
Weather sealing & energy efficiency

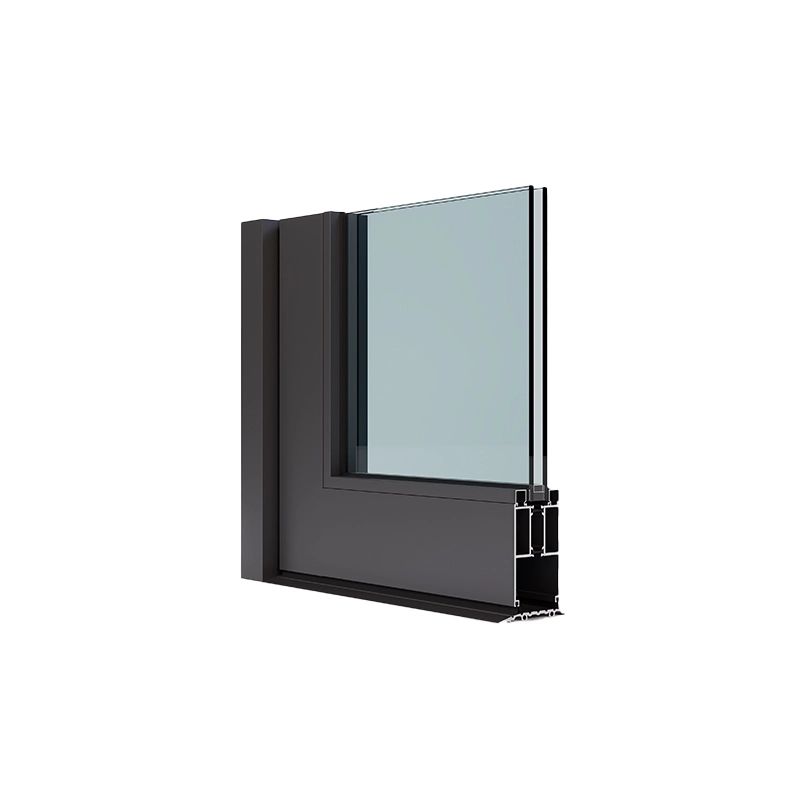

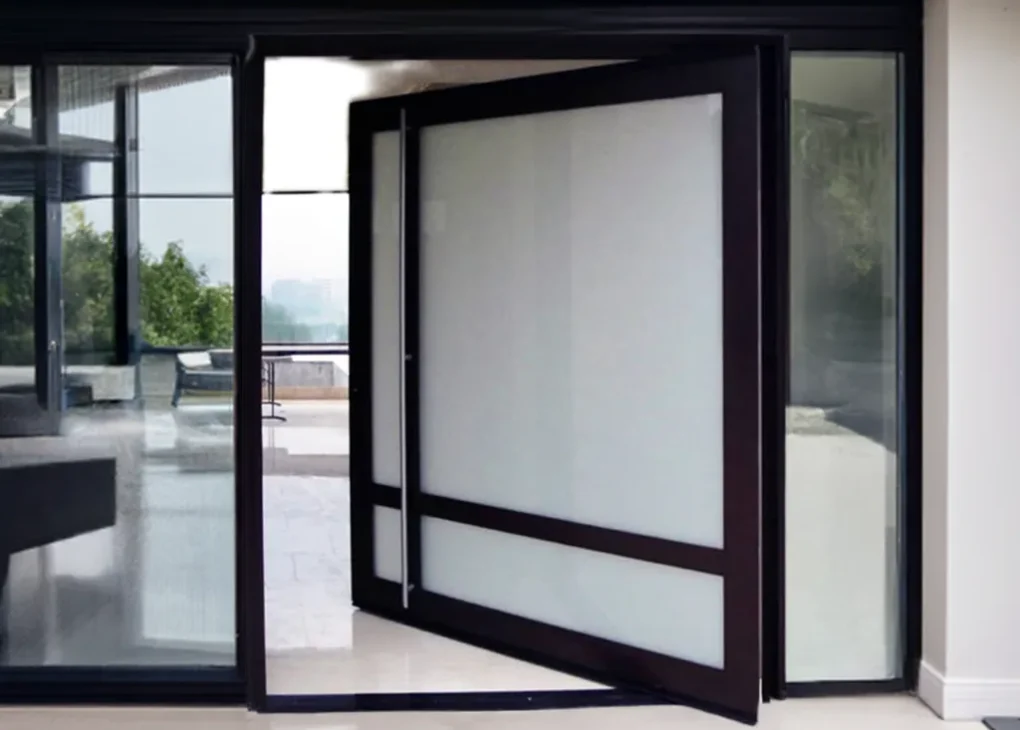

| Specification | Details |
|---|---|
| Section Profile Wall Thickness | 2.0 mm |
| Section Profile Frame Thickness | 100 mm |
| Opening Angle | 90° / 120° / 180° |
| Size Range (W × H) | 1000–2000 mm × 2400–3500 mm |
| Glass Thickness | 5 mm + 20A + 5 mm (double glazing) |
| Maximum Load-Bearing | 300 kg |

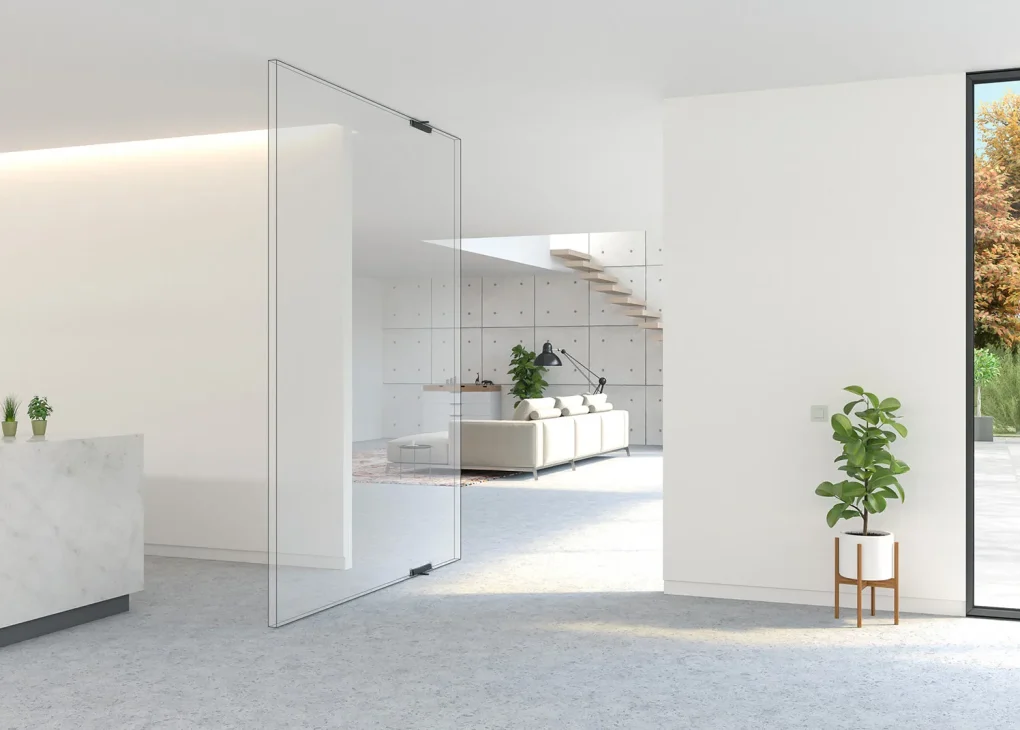

| Specification | Details |
|---|---|
| Section Profile Wall Thickness | 2.0 mm |
| Section Profile Frame Thickness | 46 mm |
| Opening Angle | 90° / 120° / 180° |
| Size Range (W × H) | 900–1800 mm × 2200–3000 mm |
| Glass Options | Single tempered glass / Insulated glass |
| Maximum Load-Bearing | 150 kg |

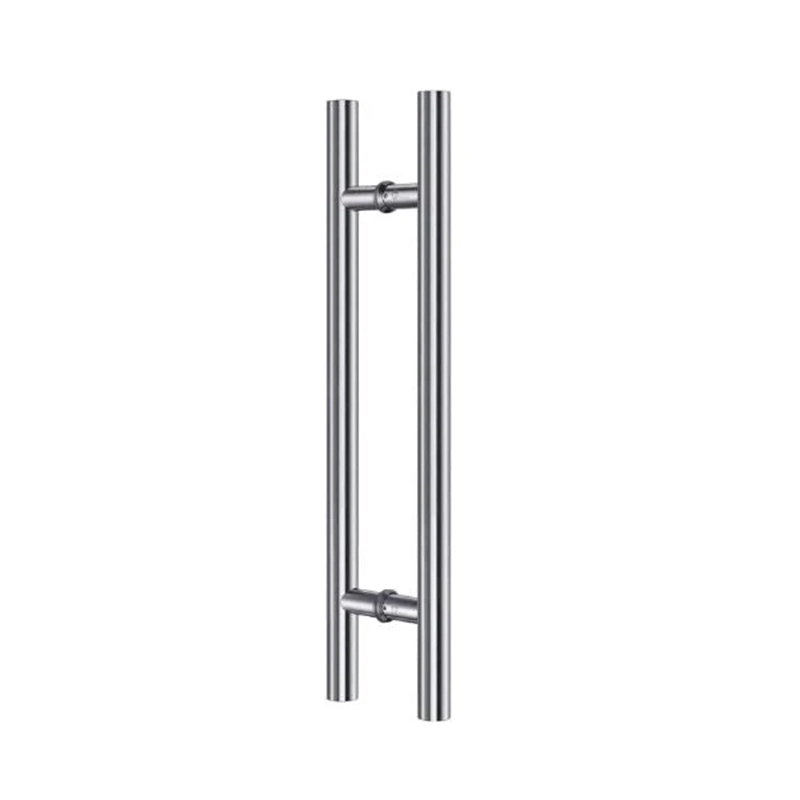

Upgrade your pivot doors with premium accessories designed for seamless movement, enhanced security, and long-lasting durability while preserving a sleek, modern aesthetic.
APRO pivot doors are rigorously tested for air and water tightness, thermal insulation, soundproofing, and wind resistance, meeting CE, NFRC, and ISO standards to ensure durability, energy efficiency, and long-term performance in all environments.
| Feature | Pivot Door | Hinged Door |
|---|---|---|
| Mounting & Motion | Rotates on top/bottom pivot; swings smoothly inward or outward | Standard side hinges; swings on one side |
| Size & Weight | Supports larger, heavier panels with ease | Typically limited to standard residential sizes |
| Design Aesthetic | Sleek, minimalist, statement-piece | Classic and varied; suits any style |
| Space Usage | Requires clearance on both sides; no frame restrictions | Needs one clear swing-side; compact installation |
| Cost | Premium—30–50% higher than hinged | More affordable with wide customization |
| Durability & Warping | Needs sturdier materials to prevent sag over time | Less prone to warping; stable framing |
| Energy Performance | Excellent insulation when thermally broken | Good energy performance with proper seals |
A pivot door rotates on a central or offset spindle rather than side hinges, allowing ultra-wide and elegant openings
It supports heavier materials, needs less framing, and delivers a sleek aesthetic with minimal visible hardware
Absolutely—they can handle substantial weight, are engineered for longevity, and offer high-end build quality
They offer solid sound and thermal performance, though slight framing gaps may reduce air-tightness compared to traditional hinged doors
No—thanks to balanced pivot hardware, even large doors glide smoothly with minimal effort and can swing up to 300°
