A68T folding door roller system close up

A68T Series Folding Door

The A68T Series Aluminum Folding Door uses a thermal break (polyamide strips) to improve insulation and comfort. Built with robust aluminum profiles and a smooth sliding system, it supports double or triple glazing and multiple configurations—ideal for residential and commercial openings with custom sizes and finishes.

Thermal break system with polyamide strips for better insulation
High energy efficiency for improved comfort and reduced heat transfer
Robust aluminum profiles for strength and stability
Smooth sliding/folding operation with durable hardware
Customizable sizes & finishes to match project needs
Supports double or triple glazing
High weather-resistance sealing performance
Multiple panel configurations available
Designed to meet NFRC / AAMA referenced standards
Rated maximum load-bearing: 150 kg

Airtightness	Water-tightness	Sound Insulation	Thermal Insulation	Wind Resistance
4	3 \| 350pa	4 \| 44dB	4 \| 2.5w/m²k	AW (AAMA STANDARD)
Door Type	Visible Surface	Wall Thickness	Frame Thickness	Size Range (mm)
Aluminum Folding Door A68T Series	Glass sash: 63.2mm	2.0mm	62.57mm	Width: 500–850 Height: 2000–3400
Glass Thickness			Maximum Load-Bearing
6 + 12A + 6 6 + 12A + 6 + 12A + 6			150kg

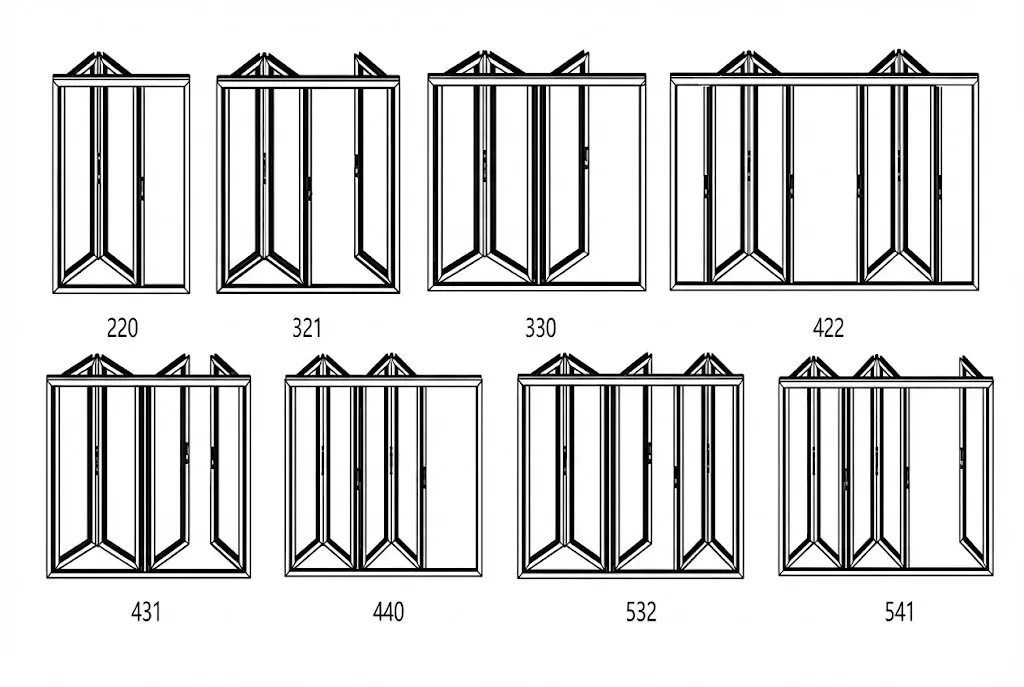

A68T Series Folding Door Model

A68T Series Folding Door CAD

Certifications

A68T triple glazed folding door energy label

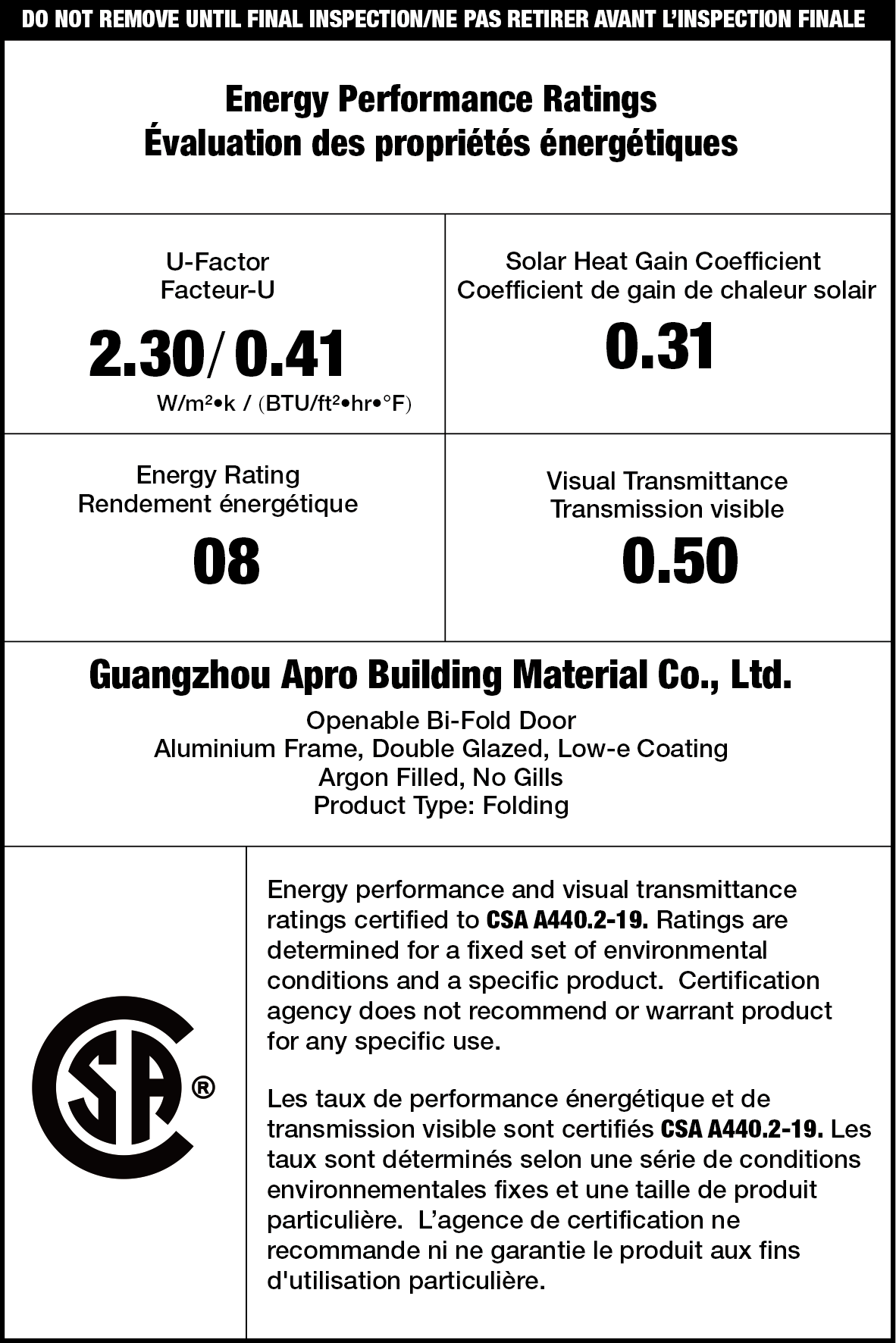

Double glazed folding door CSA rating label

Energy performance label for aluminum bi fold

Folding door U factor and SHGC rating sticker

FAQs

What opening sizes can the A68T folding door support?

The shown size range is Width 500–850 mm and Height 2000–3400 mm (per panel range shown).

Can I choose double or triple glazing?

Yes. The system supports double or triple glazing, including configurations like 6+12A+6 and 6+12A+6+12A+6.

How energy-efficient is this door?

It uses a thermal break (polyamide strips) to reduce heat transfer, improving indoor comfort and overall energy performance.

What weather and wind ratings does it have?

The performance table shows Airtightness 4, Water-tightness 3 | 350pa, and Wind resistance AW (AAMA standard).

How much weight can the system carry?

The image lists maximum load-bearing of 150 kg.

Is it suitable for residential and commercial projects?

Yes—this system is presented for both Residential and Commercial applications.

Can I customize the color and finish?

Yes. It’s designed with customizable sizes & finishes to match different architectural styles.

What should I prepare to get an accurate quotation?

Opening width/height, desired configuration (number of panels), glass type (double/triple), finish color, and site location for delivery/installation requirements.

Performance & Technical Advantages

Soundproof sliding doors showing noise reduction

Sound Insulation

Engineered with insulated glazing and tight perimeter seals, A68T achieves Class 4 sound insulation up to 44 dB, reducing street noise and wind for calmer interiors.

Thermal imaging test of building heat insulation

Thermal Insulation

A68T features a polyamide thermal break and double or triple glazing, achieving Class 4 thermal performance around 2.5 W/m²·K for improved indoor temperature stability.

Aluminum window with fresh air and green leaves

Airtightness

Rated Airtightness Class 4, A68T minimizes air leakage between panels when locked, reducing drafts, limiting dust intrusion, and maintaining consistent indoor comfort year-round.

Interior condensation with water droplets on glass

Water-tightness

With Water-tightness Class 3 at 350 Pa, A68T resists wind-driven rain, reducing leakage risks at panel joints, corners, and sill areas during heavy weather.

Window water resistance testing setup for certification evaluation

Wind Resistance

Meeting AW (AAMA) wind resistance standards, A68T maintains structural stability under pressure, ensuring aligned panels, smooth operation, and reliable long-term performance.

Customization Options For Aluminum Window

Color

Standard colors, matte finishes, custom RAL matching

Glass

Double glazing, triple glazing, Low-E options

Frame

Thermal break profiles, reinforced frame designs

Size

Custom width, height, and proportions available

Hardware

Multi-point locking, enhanced security hardware

Style

Tilt, turn, fixed, combined opening designs
