The A80T Series Tilt and Turn Window combines flexible ventilation, secure operation, and thermal efficiency. Built with a thermal break aluminum system, it supports double or triple glazing and meets CSA and Energy Star standards for reliable performance in demanding climates.
Tilt and turn opening for flexible ventilation and easy cleaning
Thermal break aluminum system for enhanced insulation
Double or triple glazed Low-E insulated glass options
Excellent air, water, and wind resistance performance
CSA certified to AAMA / WDMA / CSA 101 (CW-PG40)

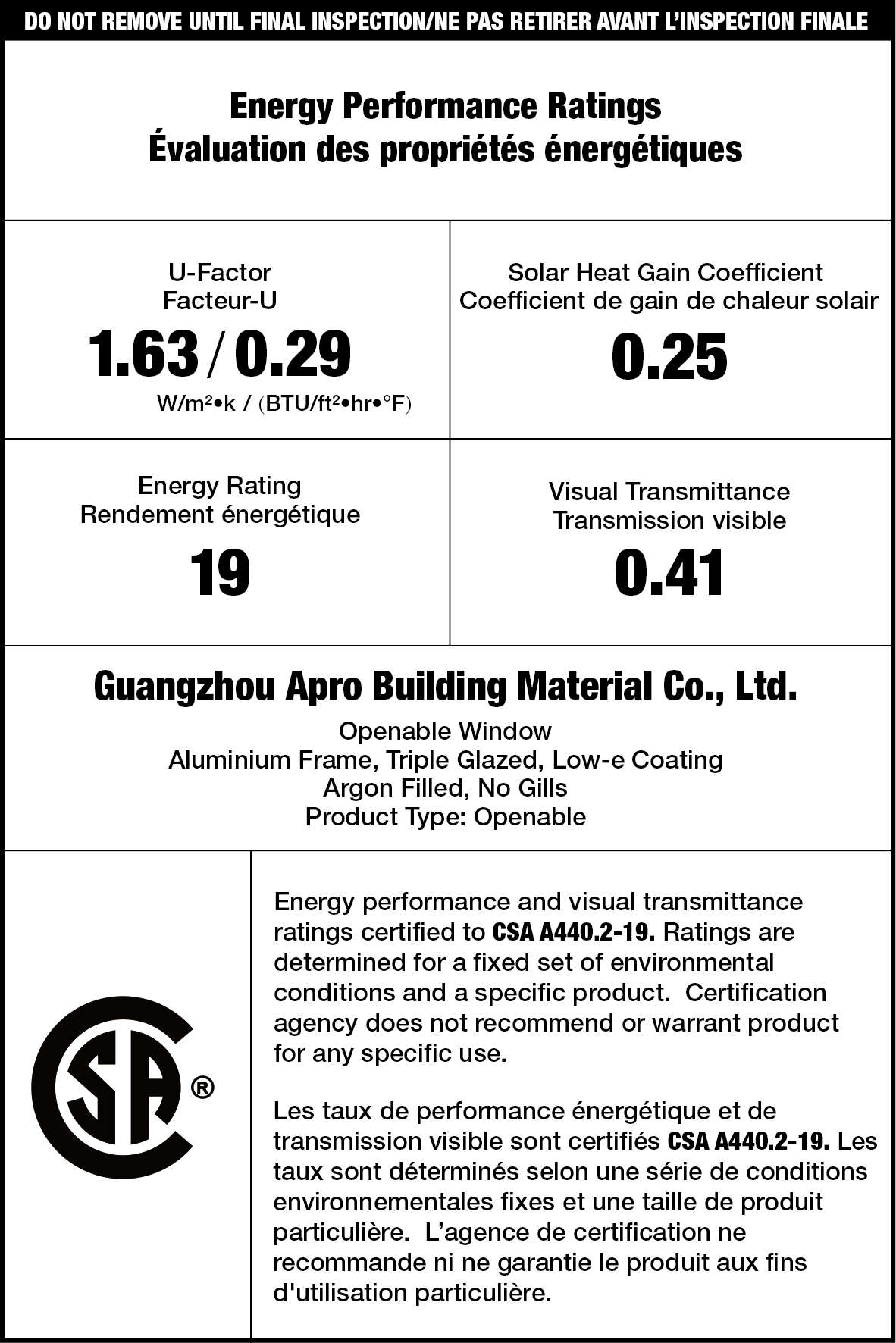

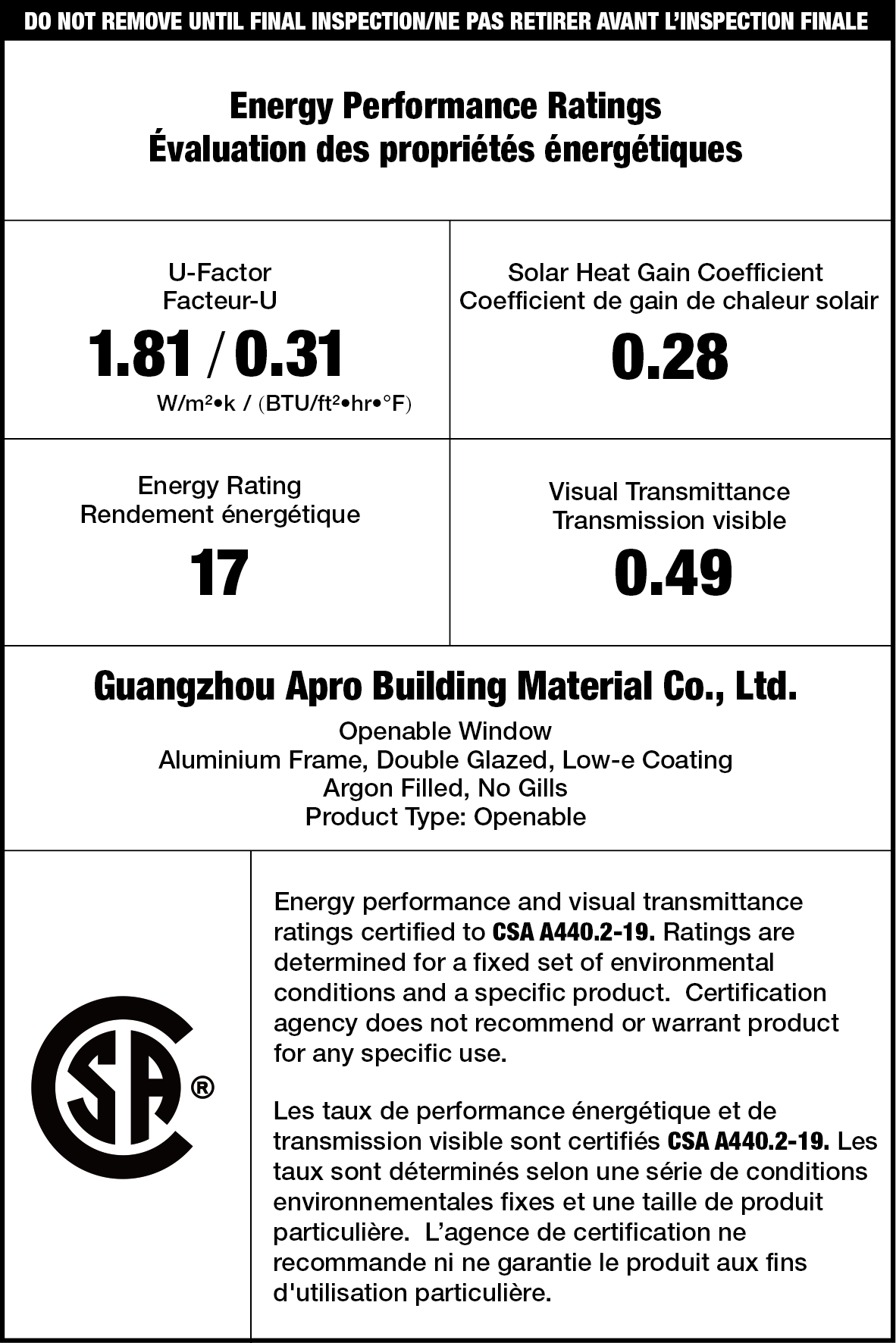

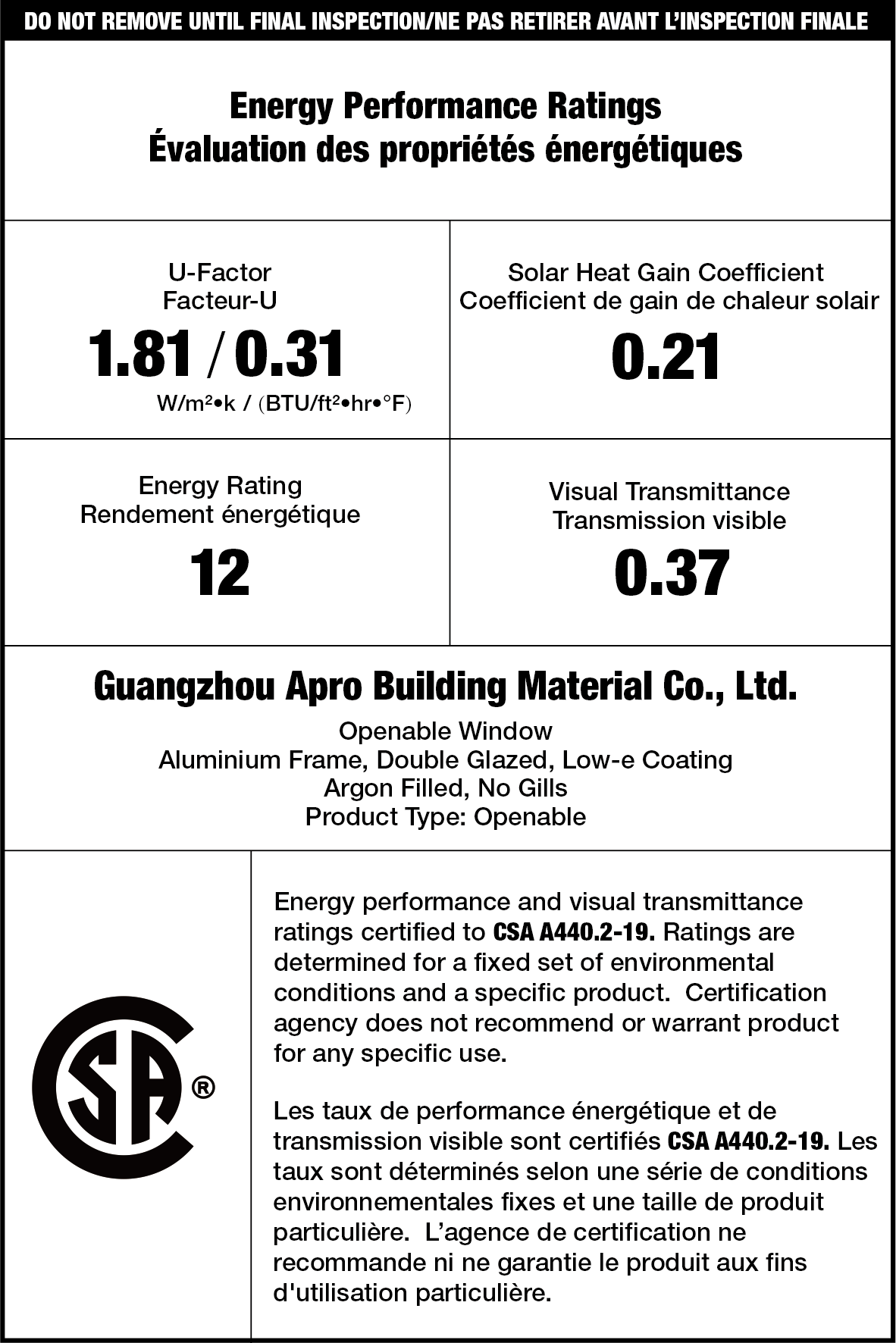

Canada Energy Star qualified product
Strong acoustic insulation (STC 44 / OITC 37)
Modern, slim frame design for residential and commercial use
| Airtightness | Water-tightness | Sound Insulation | Thermal Insulation | Wind Resistance |
|---|---|---|---|---|
| Class 8 | Class 4 / 350 Pa | Class 4 / 44 dB | Class 6 / 2.3 W/m²·K | AW (AAMA Standard) |
| Window Type | Visible Surface | Wall Thickness | Frame Thickness | Size Range (mm) |
| Casement Inside Window 80 Series |
Glass sash: 73mm Flyscreen sash: 40mm |
2.0 mm | 80 mm | Width: 500–800 Height: 700–1800 |
| Glass Thickness | Maximum Load-Bearing | |||
| 6 + 12A + 6 6 + 12A + 6 + 12A + 6 |
85 kg | |||
Standard colors, matte finishes, custom RAL matching
Double glazing, triple glazing, Low-E options
Thermal break profiles, reinforced frame designs
Custom width, height, and proportions available

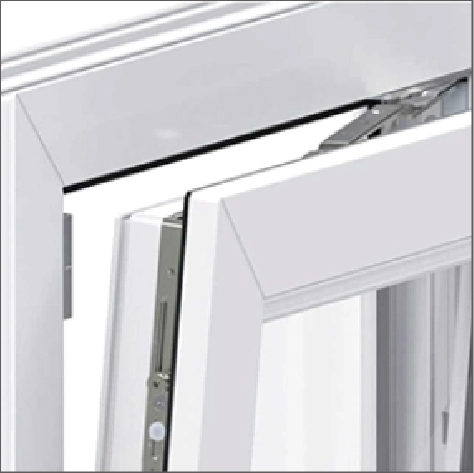

Multi-point locking, enhanced security hardware

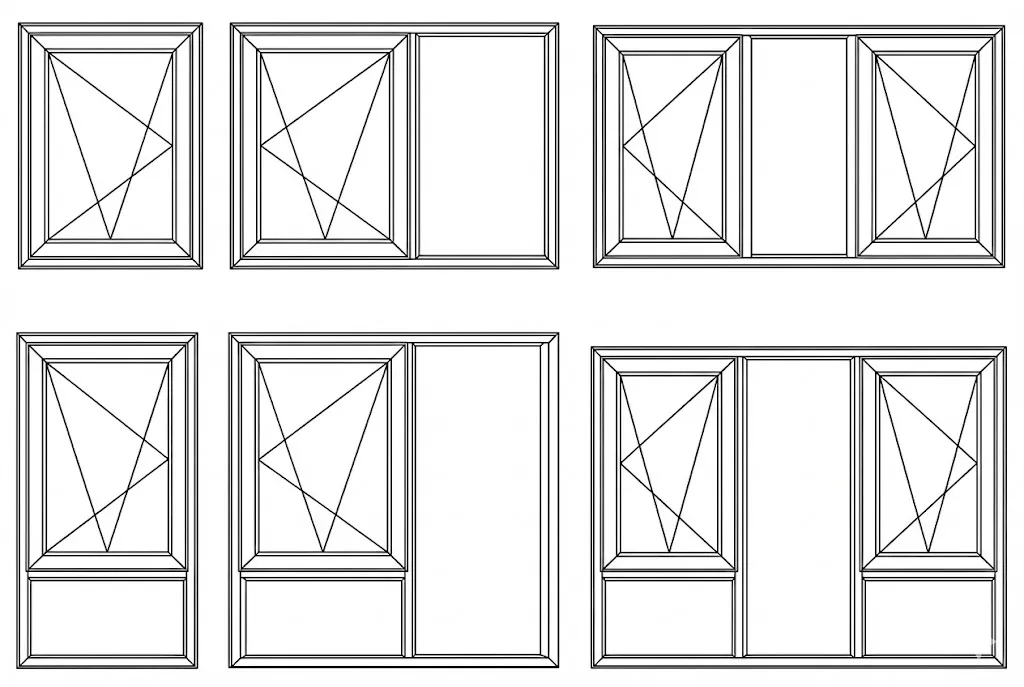

Tilt, turn, fixed, combined opening designs
