A80T Series Tilt and Turn Window
The A80T Series Tilt and Turn Window combines flexible ventilation, secure operation, and thermal efficiency. Built with a thermal break aluminum system, it supports double or triple glazing and meets CSA and Energy Star standards for reliable performance in demanding climates.
-
Tilt and turn opening for flexible ventilation and easy cleaning
-
Thermal break aluminum system for enhanced insulation
-
Double or triple glazed Low-E insulated glass options
-
Excellent air, water, and wind resistance performance
-
CSA certified to AAMA / WDMA / CSA 101 (CW-PG40)
-
Canada Energy Star qualified product
-
Strong acoustic insulation (STC 44 / OITC 37)
-
Modern, slim frame design for residential and commercial use
| Airtightness | Water-tightness | Sound Insulation | Thermal Insulation | Wind Resistance |
|---|---|---|---|---|
| Class 8 | Class 4 / 350 Pa | Class 4 / 44 dB | Class 6 / 2.3 W/m²·K | AW (AAMA Standard) |
| Window Type | Visible Surface | Wall Thickness | Frame Thickness | Size Range (mm) |
| Casement Inside Window 80 Series |
Glass sash: 73mm Flyscreen sash: 40mm |
2.0 mm | 80 mm | Width: 500–800 Height: 700–1800 |
| Glass Thickness | Maximum Load-Bearing | |||
| 6 + 12A + 6 6 + 12A + 6 + 12A + 6 |
85 kg | |||
Certifications
FAQs
What is the advantage of a tilt and turn window?
It offers two opening modes—tilt for safe ventilation and turn for full opening—making it practical, secure, and easy to clean.
Is the A80T suitable for cold climates?
Yes. Its thermal break system, Low-E glazing, and CSA-tested performance make it suitable for cold and mixed climate zones.
Can I choose triple glazing for better insulation?
Yes. The A80T supports both double-glazed and triple-glazed insulated glass units.
Is this window Energy Star certified?
Yes. It is a Canada Energy Star qualified product and meets strict energy efficiency requirements.
Where is this window typically used?
It’s ideal for residential homes, apartments, and light commercial buildings where ventilation control and energy efficiency are important.
Performance & Technical Advantages
Sound Insulation
Thermal Insulation
Airtightness
Water-Tightness
Wind Resistance
Customization Options For Aluminum Window
Color
Standard colors, matte finishes, custom RAL matching
Glass
Double glazing, triple glazing, Low-E options
Frame
Thermal break profiles, reinforced frame designs
Size
Custom width, height, and proportions available
Hardware

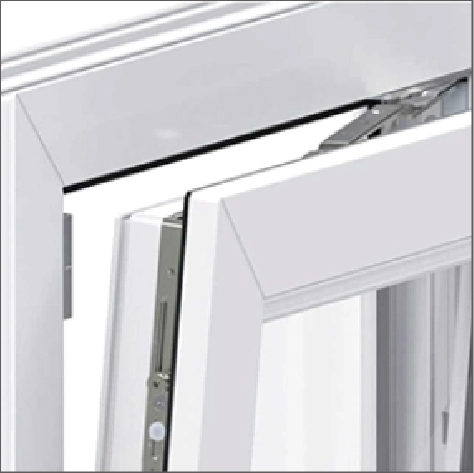

Multi-point locking, enhanced security hardware
Style

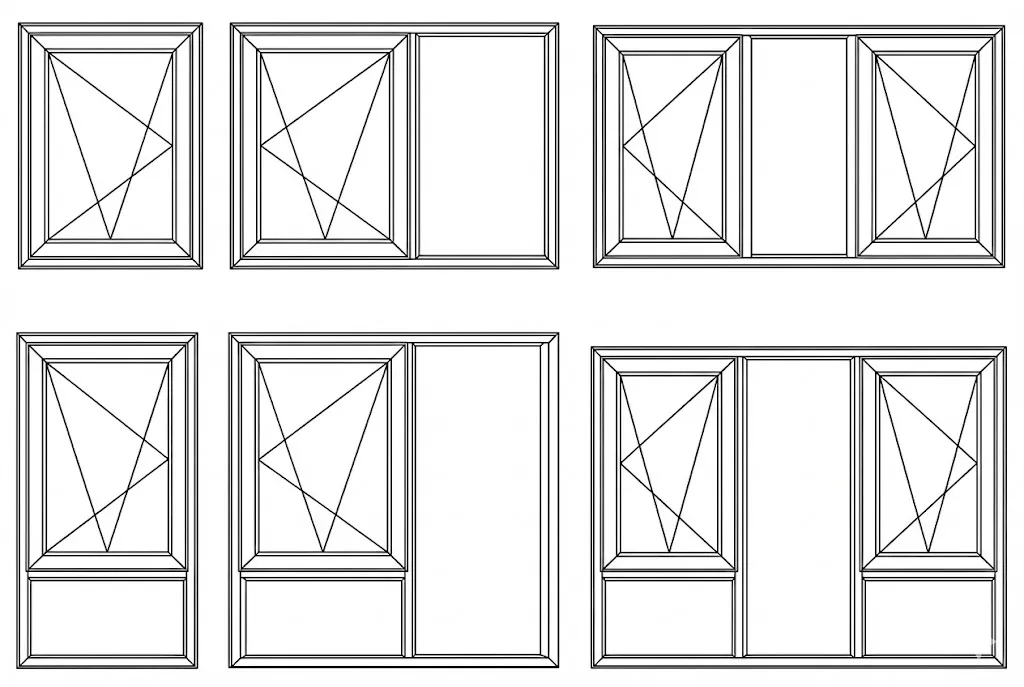

Tilt, turn, fixed, combined opening designs
